ABB free@home Addon Metadata

Every ABB free@home Addon contains one special file free-at-home-metadata.json, which describes the Addon itself. When a new Addon is added to the system access point, it will look at this file to determine how to handle the Addon and what should be displayed to the end-user in the UI of the free@home next app (and similarly, the Web interface of the system access point).

Metadata attributes

The free-at-home-metadata.json file contains a JSON object with the following entries. Note that the attributes marked as required must be present for every Addon, while the attributes marked as optional can be omitted, if it provides no benefit for the given Addon.

id (required)
A unique identifier for an Addon. The developer must chose an id such that it does not conflict with any other Addon that the user may want to install. The value uses a typical reversed domain name, e.g. an Addon example1 written by Busch-Jaeger would use
```
de.busch-jaeger.freeathome.example1
```
Typically you would use your own company name here, or real-name if no company name is available. Note that it is preferred to use an actual domain name (in reverse notation), but not a requirement, i.e. the domain name does not have to actually exist.
name (required, can be localized)
A human readable name of the Addon.
This name is shown in the free@home next app and in the System Access Point Web interface. The name is displayed in the list of installed Addons - it should be relatively short, so that the end-user can recognize each Addon immediately.
This attribute can be localized. Instead of a simple string, you can use a JSON object, providing a different value for each language (though the “en” language always must be present and is used as a fallback). For example:
```
{
  "name": "Sample Addon"
}
```
localized:
```
{
  "name": {
    "en": "Sample Addon",
    "de": "Beispiel Addon"
  }
}
```
The full list of valid language codes for a given System Access Point version can be obtained from the swagger documentation on http://<IP of System Access Point>/swagger in the /rest/ref/{reference} call of the Add-on API.
description (required, can be localized)
A human readable description of the ABB free@home Addon. This is similar to the name, but allows for a longer text. It is display in the free@home next app and in the System Access Point web interface when the user clicks on the ABB free@home Addon.
Similar to the name, the description can be localized. See the documentation of name for details.
version (required)
The version of this Addon. This is displayed in the free@home next app and in the System Access Point Web interface.
entryPoint (required)
This should normally be set to build/main.js and is the relative path from the root of the archive to the main JavaScript file. This file is executed by Node.js.
license (required)
What license your Addon should be published under.
type (required)
Can be one of “app”, “runtime” and “standalone”. For Addons, always set this to “app”.
author (required)
The name of the author of this Addon.
url (required)
If there is a website where the user can find additional information about your Addon, you can add the link here.
minSysapVersion (optional, since System Access Point version 3.1.0)
The minimum version of the system access point required by this Addon, for example “3.1.0”. A System Access Point that prior to version 3.1.0 will ignore this.
parameters (optional)
This attribute can contain a JSON object containing additional parameters of your Addon. The end-user of the Addon can set the values of the parameters listed here to custom values, this can be used to configure the Addon for a specific user. One possible example use for this is address, username and password of an external device that should be controlled by the Addon.
See the dedicated parameters section below for details.

A sample metadata JSON file looks like this:

{
    "name": "Example for ABB free@home Addons",
    "version": "1.0.0",
    "id": "de.busch-jaeger.freeathome.example",
    "license": "MIT",
    "description": "Example for ABB free@home Addons",
    "url": "http://busch-jaeger.de",
    "author": "Busch Jaeger",
    "type": "app",
    "entryPoint": "build/main.js"
}

ABB free@home Addon parameters

Some Addons will be able to run out of the box without any parameters. In those cases, the parameters attribute in the metadata file is not needed at all.

However in many cases, the Addon needs to be adjusted to the environment of the end-user, or the Addon may want to allow the user to configure some aspects of the Addon. This is what parameters are used for.

A common use-case would be an Addon that adds an external device to the free@home system. Imagine an external device, for example a smart switch, that offers a REST interface to send commands to this device. The Addon can be written such that the “switch off” or “switch on” REST command is sent whenever the end-user clicks the corresponding command in the free@home app. However this is only possible when the Addon knows some data that is only available to the end-user, such as:

The IP address (and possibly the port) of the device in the local network of the end-user
The username and password (or similar data) of the REST interface, if the device requires authentication

To do this, the Addon can add these as parameters in the free-at-home-metadata.json and let the user configure them after installing the Addon:

{
    ...
    "parameters": {
        "default": {
            "name": "Settings",
            "items": {
                "address": {
                    "name": "Address",
                    "type": "ipv4"
                },
                "port": {
                    "name": "Port",
                    "type": "number",
                    "min": 1024,
                    "max": 65535
                },
                "username": {
                    "name": "Username",
                    "type": "string"
                },
                "password": {
                    "name": "Password",
                    "type": "password"
                }
            }
        }
    }
}

With this file, the free@home next App and the System Access Point web interface will display Address, Port, Username and Password fields in the settings of the Addon and let the end-user configure them.

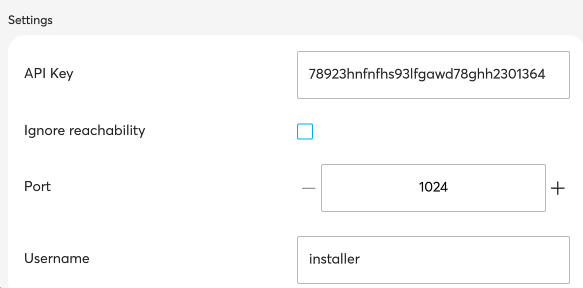

Screenshot of parameters in the app

What type of input field is displayed to the user, depends on the type field and depending on the type, possibly additional data (most notably min and max, specifying the range and value for the default value to use). The name is what is displayed to the user for this parameter.

Possible types are:

number
This type has a min and a max argument, in addition to the name and type, specifying the range of valid values.
string
The user can enter a normal string here.
password
Similar to string, but will be displayed as password instead, i.e. the text is not visible in clear text when displayed to the user.
boolean
This will display a checkbox that can either be checked or unchecked.
ipv4
This type allows the user to enter an IPv4 address.
text
This is a read-only type. The specified text is simply displayed to the user.
date
time
duration
weekdays
floor
room
channel
select

Parameter groups

If an Addon provides many parameters, grouping them may be useful. In the free-at-home-metadata.json, each parameter must be in a group - in the example above, there is only one group, named default and the name of the group displayed to the user is Settings.

Normally you can simply keep this structure. However if needed, you can add additional groups, for example to configure authentication parameters in a Authentication Settings group and advanced settings that the user will normally not changed in an Advanced Settings group:

{
    ...
    "parameters": {
        "authentication": {
            "name": "Authentication Settings",
            "items": {
                "username": {
                    "name": "Username",
                    "type": "string"
                },
                "password": {
                    "name": "Password",
                    "type": "password"
                }
            }
        },
        "advanced": {
            "name": "Advanced Settings",
            "items": {
                "pollinginterval": {
                    "name": "Polling interval (seconds)",
                    "type": "number",
                    "min": "2",
                    "max": "2000",
                    "value": "10"
                }
            }
        }
    }
}

Using parameters in an ABB free@home Addon

When parameters are defined in the metadata file, they can be accessed from the TypeScript code in the Addon. The configured value will show up in the Configurationof the Addon, the configurationChanged event of the ScriptingHost class will provide the current configuration.

Please see the writing Addons section for more information about using the configuration parameters in the Addon.
